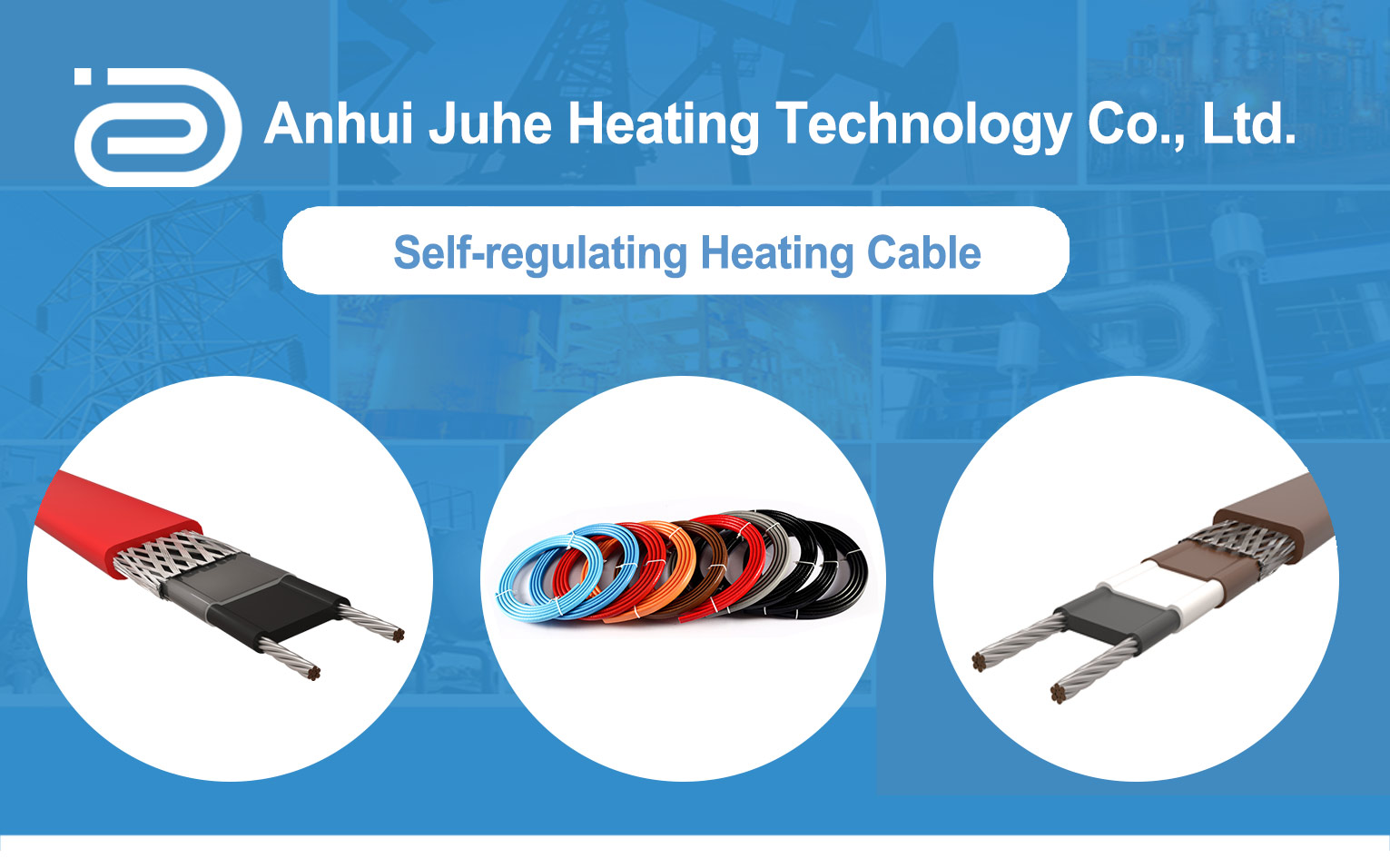

Medium-temperature Self-Regulating Heating Cable SRX
Freezing protection of all components of roofs and drainage systems;
Maintenance of the process temperature of pipelines and tanks in an explosion-hazard area.
Supply voltage :
220V-240VNominal power :
15W/m, 30W/m, 45W/m, 60W/mMaximum Un-energized temperature :
200°CMaximum Energized temperature :
120°CMinimum installation temperature :
-40°CSelf Regulating Heat Cable Specification:
Supply voltage: 220V to 240V
Max. permissible operating temperature under load: +120 °C
Max. permissible operating no-load temperature: +200 °C
Temperature class: T4, T3
Protection rating: IP66
Minimum installation temperature: -40 °C
Minimum bending radius: 25 mm at -40 °C
Rated power: 10 ,16, 24, 30, 40 (W/m) at 10°C
Explosion-protection type: 1ExellCT3.....T6GbX

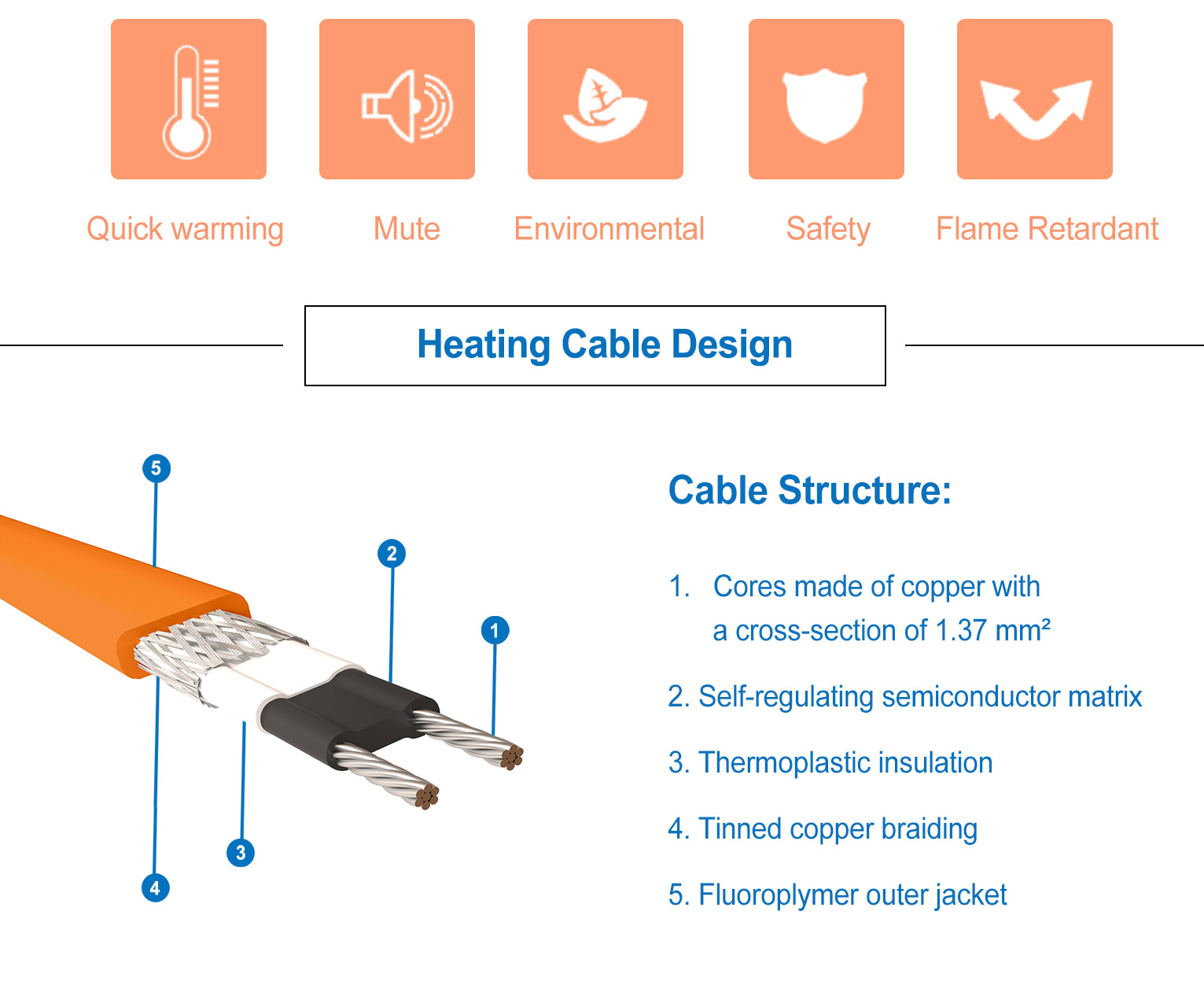

Self Regulating Heat Cable SRX Design:
1. 19*0.32 Nickel plated copper wire
2. Self-regulating conductive core
3. Thermoplastic insulation
4. Tinned copper braid
5. Fluoroplymer outer jacket
Technical Data:
| Technical Data | 15SRX2CF | 30SRX2CF | 45SRX2CF | 60SRX2CF |
| Output Power@+10°C(W/m) | 15 | 30 | 45 | 60 |
| Maximum Energized | 120°C | 120°C | 120°C | 120°C |
| Maximum Un-energized | 200°C | 200°C | 200°C | 200°C |
| Maxlength@0°C | 70/102/- | 60/78/- | 54/65/- | 42/66/76- |
| Max length@-20°C 16/20A(m) | 78/94/- | 60/90/- | 46/67/75 | 36/52/62 |
| Size (mm) | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 |
| Weight((kg/km) | 98 | 98 | 98 | 98 |
Self Regulating Heat Cable SRX Features:
• Automatic regulation of heat release when the temperature of the heated surface changes.
• It can be cut of to the required length.
• It does not overheat or burn through in case of self-crossing.
• It can be used in both safe and explosion-hazard areas

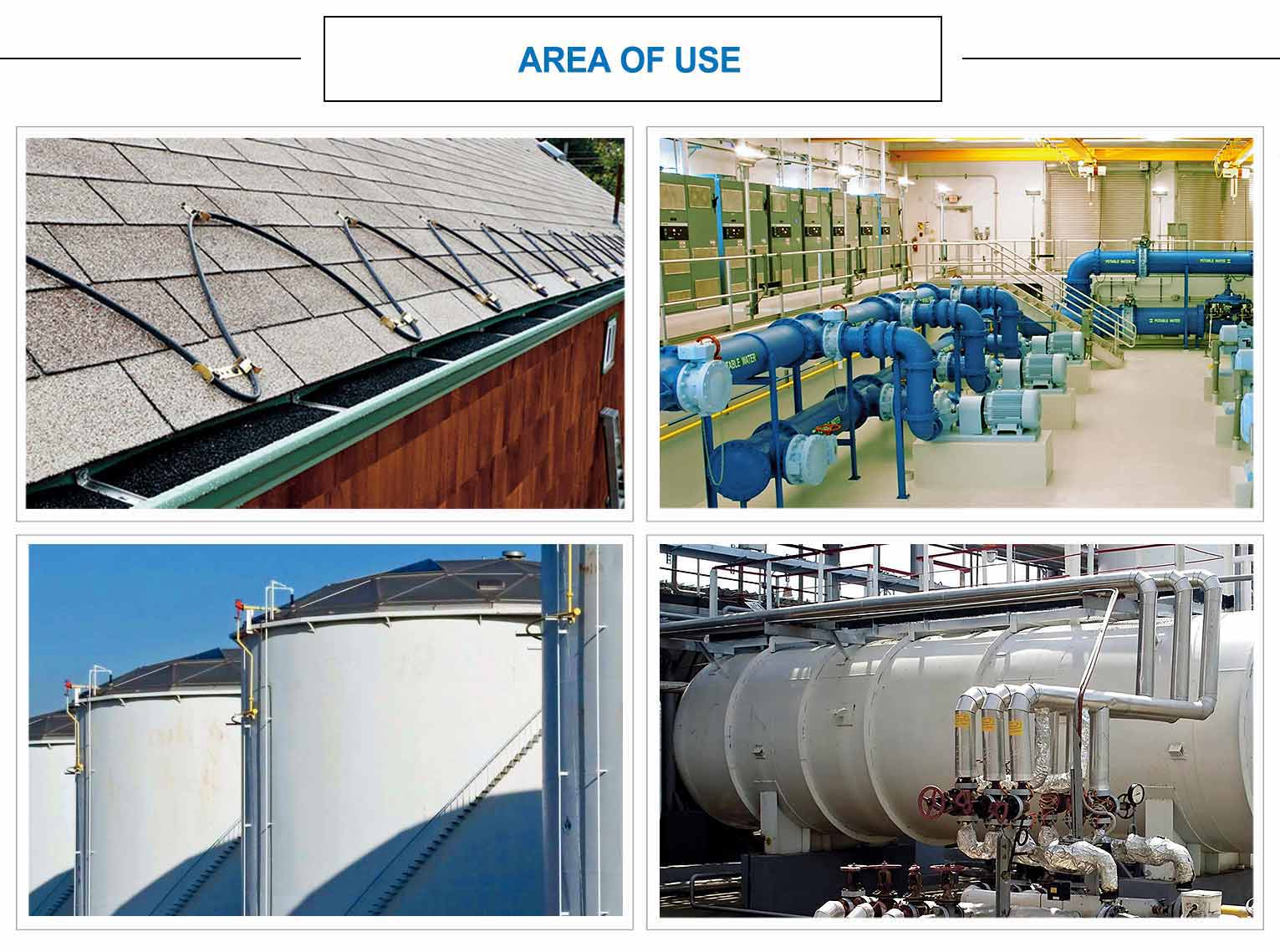

Area of Use
Freezing protection of all components of roofs and drainage systems; Maintenance of the process temperature of pipelines and tanks in an explosion-hazard area.
Details
Freezing protection of all components of roofs and drainage systems; Maintenance of the process temperature of pipelines and tanks in an explosion-hazard area.
Details
Self Regulating Heat Cable SRS can be used in the livestock industry, to keep livestock warm. For example, provide warm drinking water for cows to ensure the health and production performance of livestock.
Details
Self Regulating Heat Cable SRX can be used in some industrial fields, such as the insulation of pipelines and equipment in chemical, petroleum, electric power and other industries.
Details
