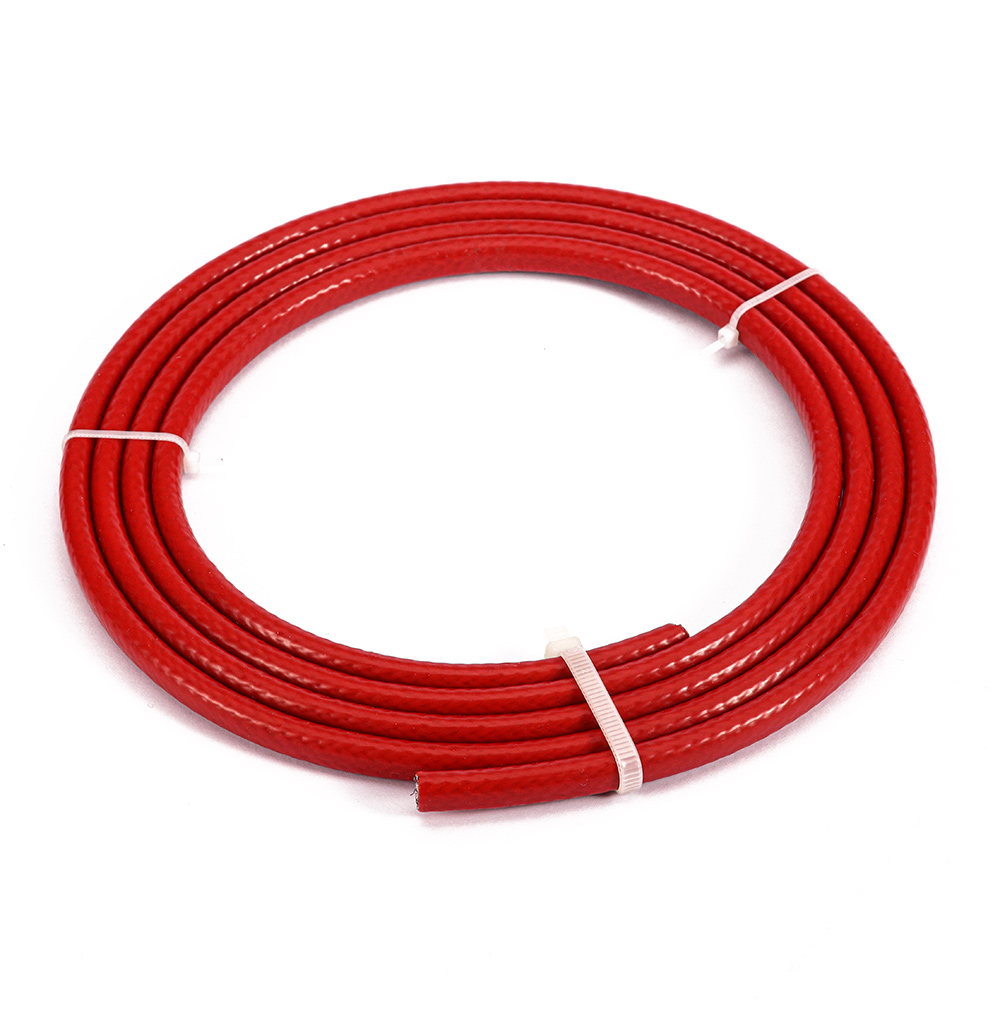

SRX Middle Temperature Heat Tracing Self Regulating Heating Cable
SRX self-regulating heating cable suitable for use in the high temperature range of industrial applications
such as pipe freeze protection, vessel heating and process temperature maintenance for pipe or tank up to 200°C.
Supply voltage :
220V-240VNominal power :
15W/m, 30W/m, 45W/m, 60W/mMaximum Un-energized temperature :
200°CMaximum Energized temperature :
135°CMinimum installation temperature :
-40°CSRX Middle Temperature Heat Tracing Self Regulating Heating Cable is perfect for large pipes, tanks, and industrial processes, adjusting heat output based on temperature for energy efficiency. Made with durable nickel-plated copper and a fluoropolymer jacket, it withstands harsh conditions and is certified for both safe and hazardous areas. Flexible and reliable, the Self-Regulating Conductive Core Cable performs well even when cut or intersected.

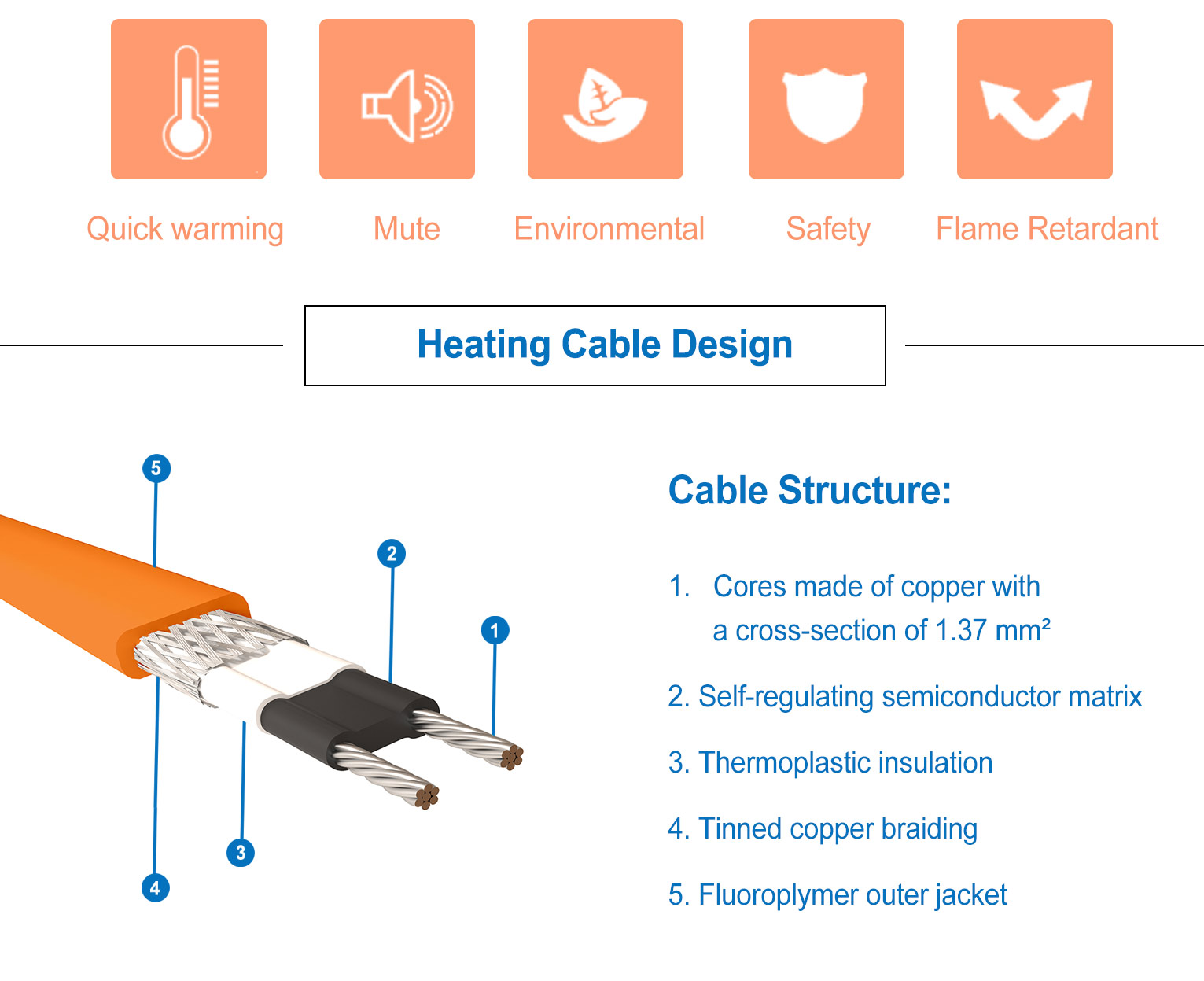

SRX Middle Temperature Heat Tracing Self Regulating Heating Cable Construction:
1. 19*0.32 Nickel plated copper wire
2. Self-regulating conductive core
3. Thermoplastic insulation
4. Tinned copper braid
5. Fluoroplymer outer jacket
Technical Data:
| Technical Data | 15SRX2CF | 30SRX2CF | 45SRX2CF | 60SRX2CF |
| Output Power@+10°C(W/m) | 15 | 30 | 45 | 60 |
| Maximum Energized | 135°C | 135°C | 135°C | 135°C |
| Maximum Un-energized | 200°C | 200°C | 200°C | 200°C |
| Maxlength@0°C | 70/102/- | 60/78/- | 54/65/- | 42/66/76- |
| Max length@-20°C 16/20A(m) | 78/94/- | 60/90/- | 46/67/75 | 36/52/62 |
| Size (mm) | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 | 10.1*5.1 |
| Weight((kg/km) | 98 | 98 | 98 | 98 |
SRX Middle Temperature Heat Tracing Self Regulating Heating Cable Advantages:
Energy Efficient: Automatically adjusts heat output, reducing energy waste.
Safe and Reliable: Prevents overheating and burnout, even when intersecting.
Durable: Resistant to UV, precipitation, and extreme temperatures.

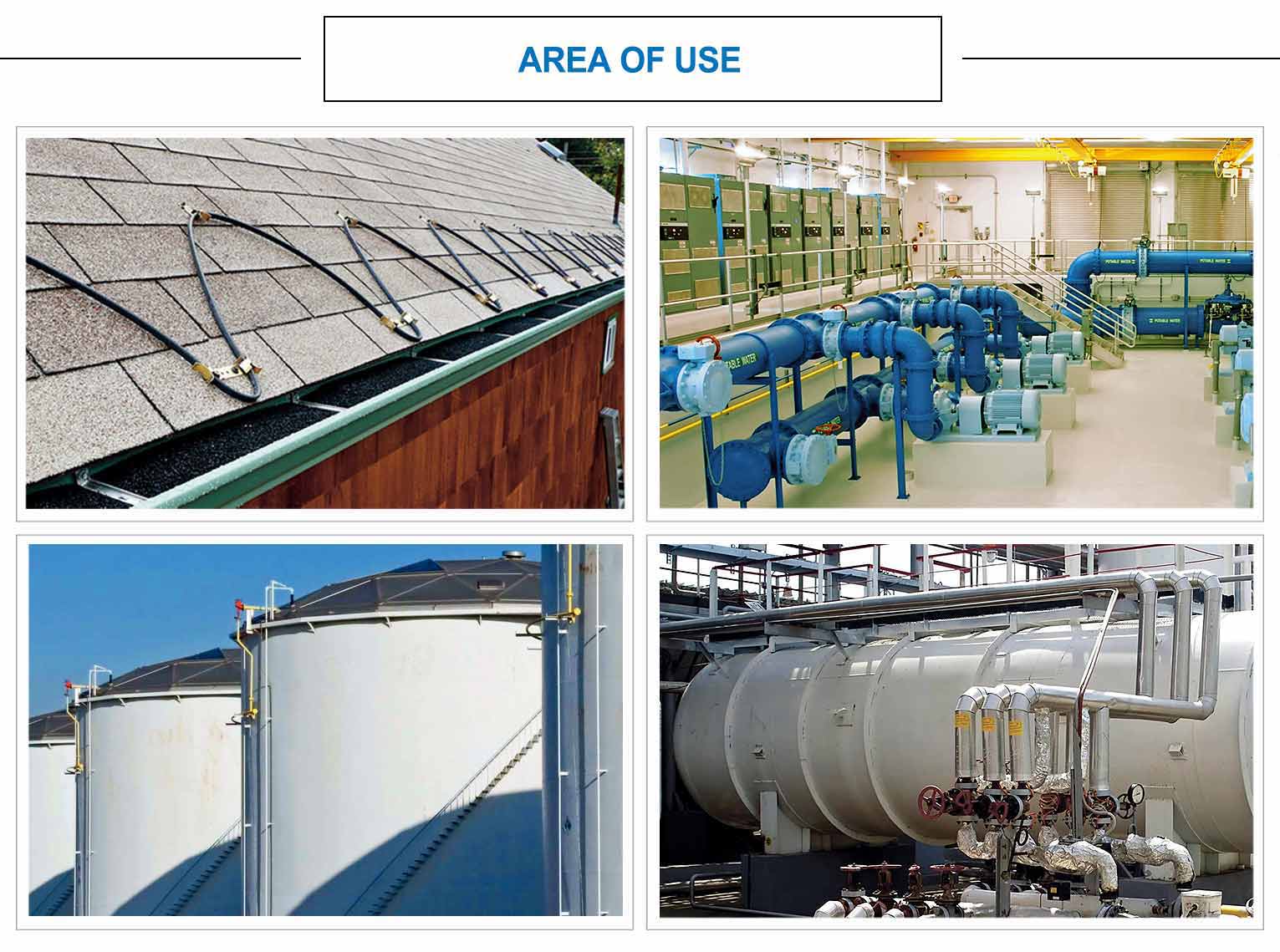

Versatile: Ideal for various industrial applications, including large pipes and tanks.
Certified: Meets IEC 60800 standards for use in safe and hazardous areas.
Easy Installation: Can be cut to any length without performance loss.
Low Maintenance: Designed for long-term, maintenance-free operation.
Customizable: Available in different lengths and configurations to suit specific needs.
SRX is a self-regulating heating cable crafted for high-temperature industrial applications, tailored for tasks like pipe freeze protection, vessel heating, and process temperature maintenance for pipes or tanks operating at temperatures up to 200°C.
