Self Regulating Heat Cable SRS

Self Regulating Heat Cable SRS can be used in the livestock industry, to keep livestock warm. For example, provide warm drinking water for cows to ensure the health and production performance of livestock.

Supply voltage :
220V-240V
Nominal power :
15W/m, 30W/m, 45W/m, 60W/m
Maximum Un-energized temperature :
150°C
Maximum Energized temperature :
110°C
Minimum installation temperature :
-40°C

Inquire Now

Product categories

New Products

Product Details

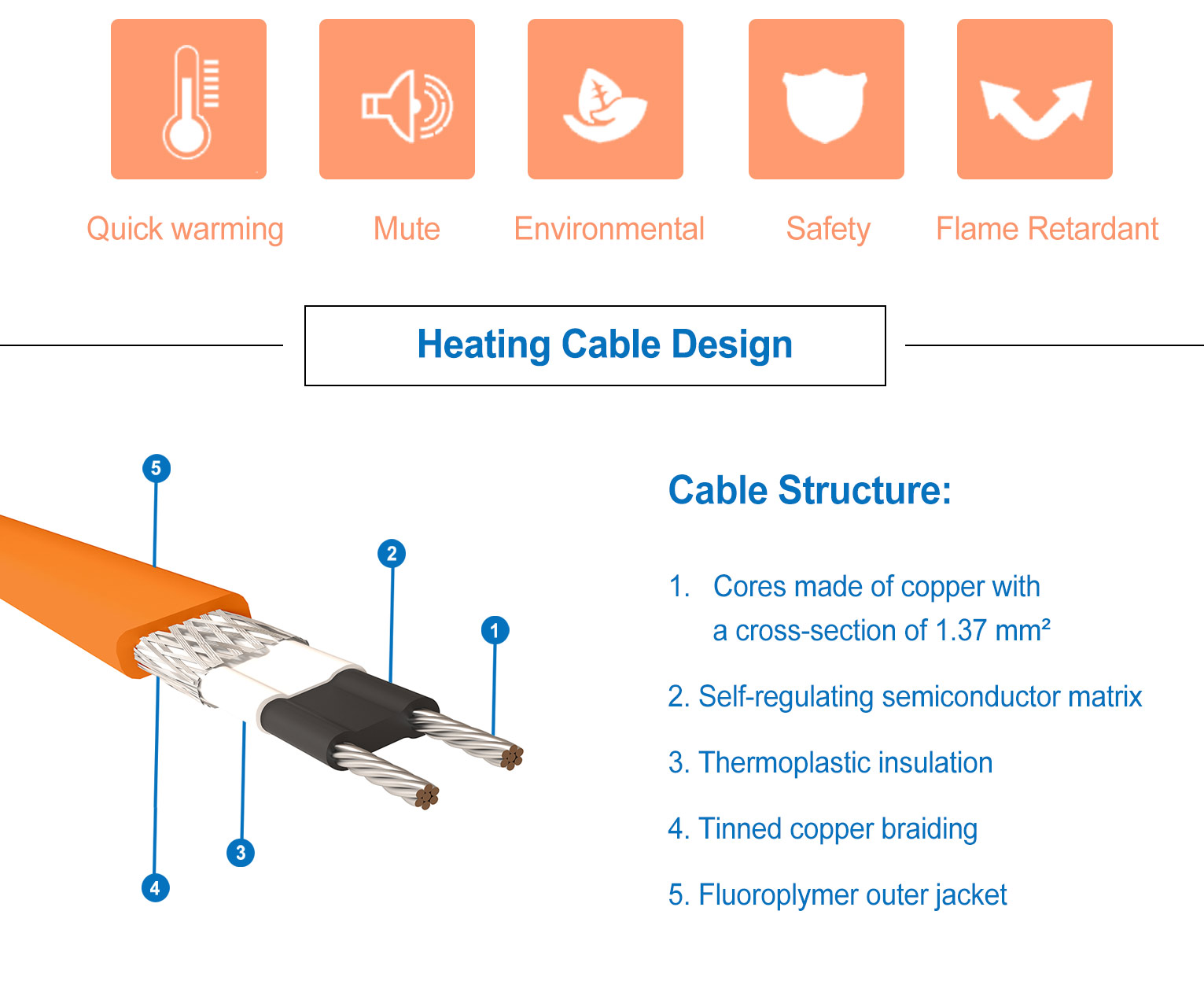

Self Regulating Heat Cable SRS Cable Construction:

1. 1.37m㎡ copper conductors

2. Self-regulating conductive core

3. Thernoplastic insulation

4. Tinned copper braid

5. Fluoroplymer outer jacket(CF)/Thermoplastic outerjacket(CT)

Technical Data:

SRS Series	Output Power@+10°C(W/m)	Max length@0°C	Max length@-20°C 16/20A(m)	Size (mm)	Weight((kg/km)
15SRS2CF	15	110/144/-	98/128/-	12.9x6.45	154
30SRS2CF	30	68/98/-	60/90/-	12.9x6.45	154
45SRS2CF	45	54/84/-	48/78/84	12.9x6.45	154
60SRS2CF	60	42/68/82	38/62/72	12.9x6.45	154

Self Regulating Heat Cable SRS Features:

Automatic regulation of heat release when the temperature of the heated surface changes
Can be cut to desired length
Does not overheat and does not burn out when self-intersecting
Resistant to precipitation, ultraviolet radiation, temperature changes
Can be used in safe and hazardous areas according to IEC 60800 standard

Hot Tags : Self regulating heating cable Medium Temperature Heating Cable Industrial heat trace Roof heating cable Heat trace for pipes Tank heating systerm
