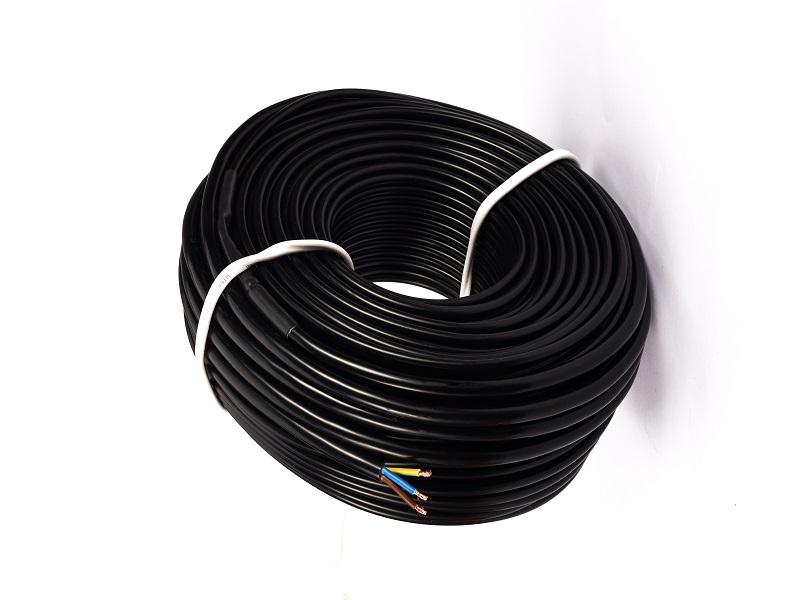

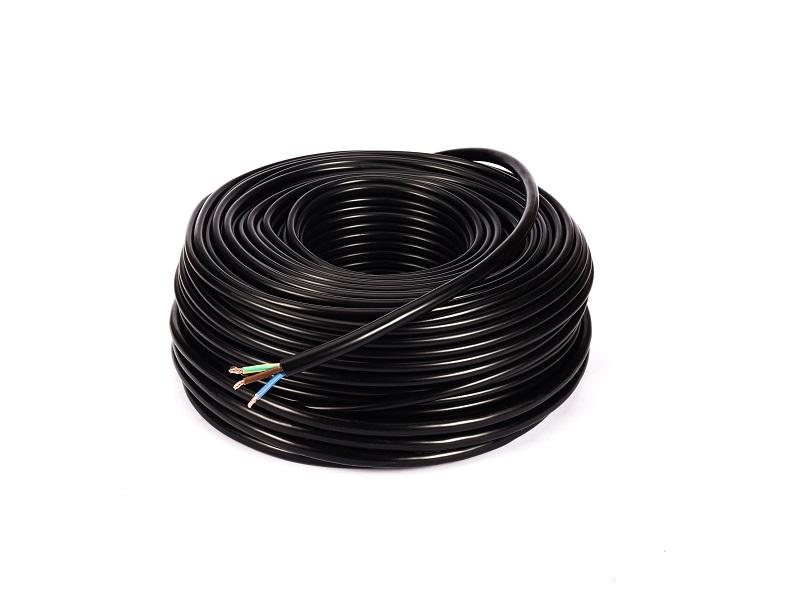

Our snow melting cable with high-wattage, ensures year-round protection in freezing temperatures for roofs and pipes.
Cable construction :
Twin conductorTwin conductor :
Solid heating coreInsulation :
FluoroplasticProtective jacket :
PVCConnector :
Out spliceOutside diameter :
7.0mmRated voltage :
220V-240VLiner power :
30W/mResistance tolerance :
+10% / -5%The Snow Melting Cable IS-Cable is a kind of outdoor twin conductors' constant wattage heating cable.It is designed to provide flexible heating options for outdoor floor heating system.
It rated at 30w/m,heating like snow melting for road/roof /airport runway/free way /bridge and also for pand and soil etc. It is easy and simple to install because you can fix the cable strapping during installation.
Technical Data:
| Part NO. | Wattage (w) | Length(m) | Resistance(Ω) |
| IS-Cable30-300 | 300 | 10 | 161.33 |
| IS-Cable30-450 | 450 | 15 | 107.56 |
| IS-Cable30-600 | 600 | 20 | 80.67 |
| IS-Cable30-900 | 900 | 30 | 53.78 |
| IS-Cable30-1200 | 1200 | 40 | 40.33 |
| IS-Cable30-1500 | 1500 | 50 | 32.27 |
| IS-Cable30-1800 | 1800 | 60 | 26.89 |
| IS-Cable30-2100 | 2100 | 70 | 23.05 |
| IS-Cable30-2400 | 2400 | 80 | 20.17 |
| IS-Cable30-2700 | 2700 | 90 | 17.93 |
| IS-Cable30-3000 | 3000 | 100 | 16.13 |
| IS-Cable30-3300 |
3300 | 110 |
14.67 |
| IS-Cable30-3600 | 3600 | 120 | 13.44 |
| IS-Cable30-3900 |
3900 | 130 | 12.41 |
| IS-Cable30-4200 |
4200 | 140 | 11.52 |
Our Snow Melting Cable IS-Cable heats up through the inner conductor. It cannot be cut in any situation because the length and the output of the constant wattage cable are determinated. Since it is a loose floor heating cable, there is no fixed cable space. So you can change the wattage/sqm by adjusting the cable spacing within the range we suggest.
