Rated voltage :
220V-240VCable construction :
Twin conductorConductor :
Solid heating coreConductor Insulation :
FluoropolymerCold Lead :
2.5mConnector :
Out spliceCable Diameter :
1.0mmCable Spacing :
50mmResistance Tolerance :
+10%/-5%Power Output :
80w/㎡ or 150w/㎡

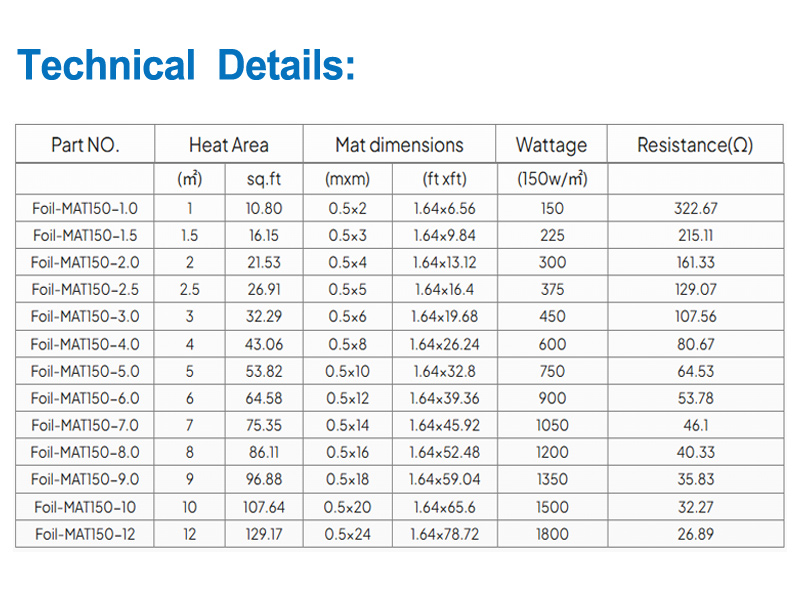

Technical Data:
150w/㎡
| Part NO. | Heat Area | Mat dimensions |
Wattage |
Resistance(Ω) |
| (㎡) | sq.ft | (mxm) | (ft xft) | (150w/㎡) | ||
| Foil-MAT150-1.0 | 1 | 10.80 | 0.5x2 | 1.64x6.56 | 150 | 322.67 |
| Foil-MAT150-1.5 | 1.5 | 16.15 | 0.5x3 | 1.64x9.84 | 225 | 215.11 |
| Foil-MAT150-2.0 | 2 | 21.53 | 0.5x4 | 1.64x13.12 | 300 | 161.33 |
| Foil-MAT150-2.5 | 2.5 | 26.91 | 0.5x5 | 1.64x16.4 | 375 | 129.07 |
| Foil-MAT150-3.0 | 3 | 32.29 | 0.5x6 | 1.64x19.68 | 450 | 107.56 |
| Foil-MAT150-4.0 | 4 | 43.06 | 0.5x8 | 1.64x26.24 | 600 | 80.67 |
| Foil-MAT150-5.0 | 5 | 53.82 | 0.5x10 | 1.64x32.8 | 750 | 64.53 |
| Foil-MAT150-6.0 | 6 | 64.58 | 0.5x12 | 1.64x39.36 | 900 | 53.78 |
| Foil-MAT150-7.0 | 7 | 75.35 | 0.5x14 | 1.64x45.92 | 1050 | 46.1 |
| Foil-MAT150-8.0 | 8 | 86.11 | 0.5x16 | 1.64x52.48 | 1200 | 40.33 |
| Foil-MAT150-9.0 | 9 | 96.88 | 0.5x18 | 1.64x59.04 | 1350 | 35.83 |
| Foil-MAT150-10 | 10 | 107.64 | 0.5x20 | 1.64x65.6 | 1500 | 32.27 |
| Foil-MAT150-12 | 12 | 129.17 | 0.5x24 | 1.64x78.72 | 1800 | 26.89 |
Foil Heating Mat Advantages:
• Foil-mat is simple to install, the foil heater delivers a consistent and even heat distribution.It can also be installed under the floor finish in wet areas without the need for additional earth grids.
• The thermal properties of the reinforced aluminium foil used in the heater help to spread the heat evenly.
• Improved savings can also be achieved by using foil underfloor heating in conjunction with the insulated underlay, as it dramatically reduces heat-up times by at least 50%. It is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to building regulations.
• The foil heating mat is ideal for installation in regular shaped rooms, such as living rooms and bedrooms.
UTH-cable is a twin-conductor indoor floor heating cable with metal ground wire. It provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
UFH-MAT made up of three different components: fiberglass, heating element, and 2.5-meter standard cold lead.It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor etc.
Details
UTH-cable Pro is a twin-conductor floor heating cable with Copper wire braided. It provides a reliable and effective underfloor heating system that can work with tiles and many other floor coverings.
Details
UFH-MAT PRO made up of three different components: fiberglass, heating element, and 2.5-meter standard cold lead.It is suitable for almost floor types, including ceramic tile, stone tile, engineered wood floor, laminate floor etc.
Details
X-cable is a twin-conductor floor heating cable with metal ground wire.It is used for indoor underfloor heating,the subfloor can be ceramic tiles, natural stone and wooden floor etc.
Details
Underfloor Foil-mat is a floor heating system consists of two different components: Inner heating wire and outer aluminum packed cover.
Details
Our Snow Melting Cable IS-Cable is a 7mm outdoor twin conductors’ constant wattage heating cable.It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
Our Snow Melting Mat IS-MAT is a 7mm outdoor twin conductors’ constant wattage heating mat. It rated at 30w/m and has Fluoroplastic and XLPE double insulation.
Details
