Underfloor heating cable X-Cable Pro

Underfloor heating cable X-Cable Pro

Our X-Cable Pro is a kind of twin conductors’ constant wattage heating cable with Copper wire braided.It has Fluoroplastic and XLPE double insulation.

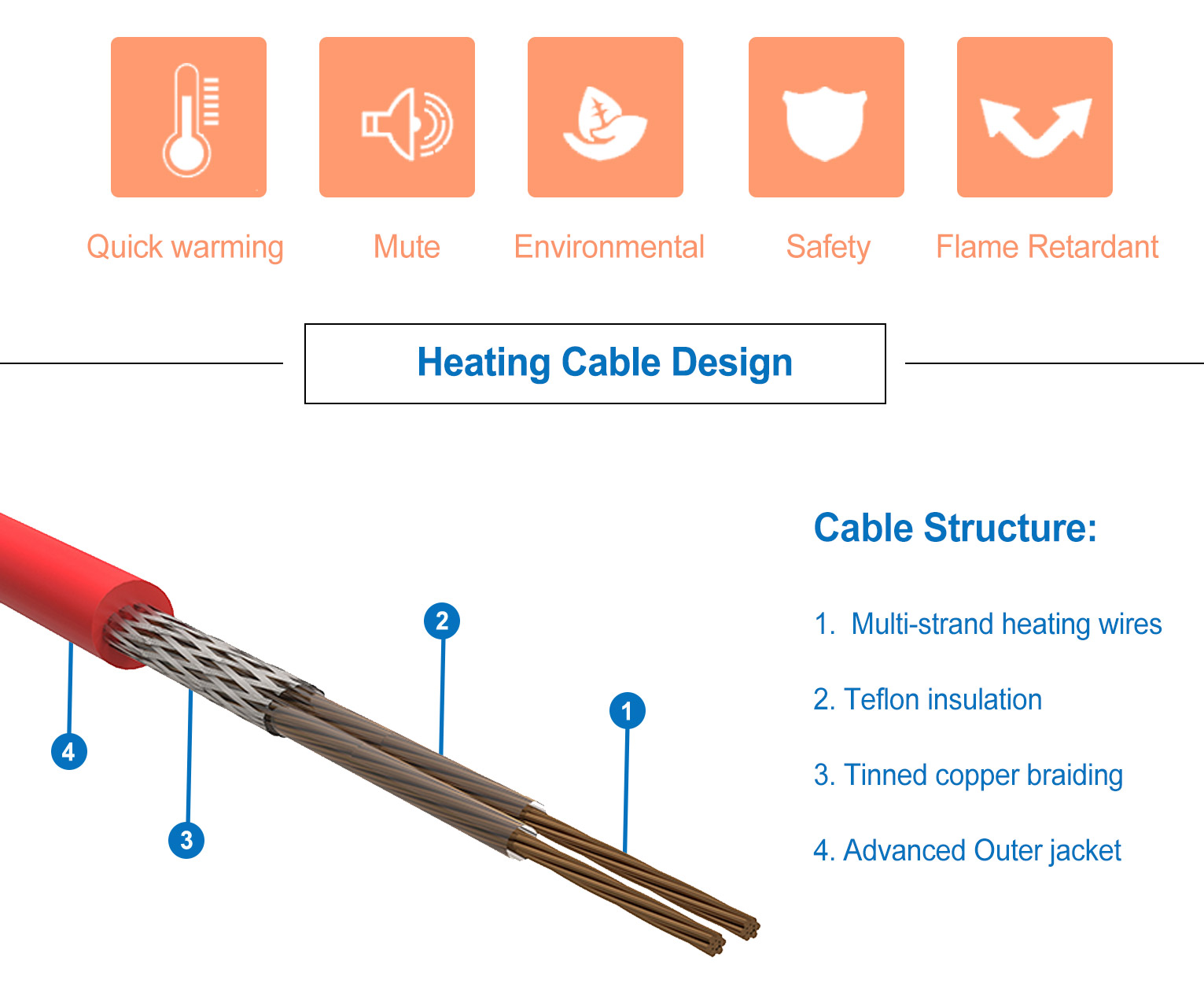

  • Cable construction :

    Twin conductor
  • Twin conductor :

    Solid heating core
  • Insulation :

    Fluoroplastic
  • Protective jacket :

    PVC
  • Connector :

    Out splice
  • Outside diameter :

    5.0mm
  • Rated voltage :

    220V-240V
  • Liner power :

    20W/m
  • Resistance tolerance :

    +10%/-5%

X-Cable-Pro is designed to provide flexible heating options for both indoor floor heating and outdoor concrete frost protection.

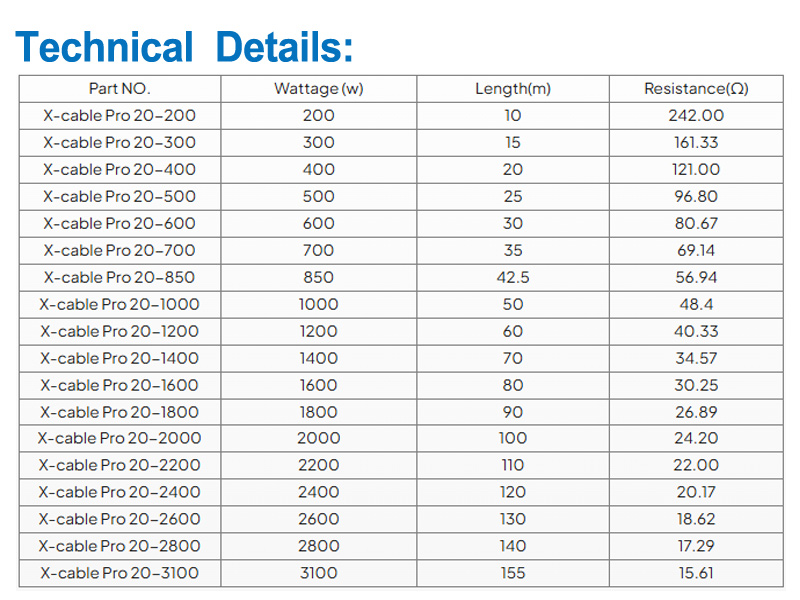

Part NO. Wattage (w) Length(m) Resistance(Ω)
X-cable Pro 20-200 200 10 242.00
X-cable Pro 20-300 300 15 161.33
X-cable Pro 20-400 400 20 121.00
X-cable Pro 20-500 500 25 96.80
X-cable Pro 20-600 600 30 80.67
X-cable Pro 20-700 700 35 69.14
X-cable Pro 20-850 850 42.5 56.94
X-cable Pro 20-1000 1000 50 48.4
X-cable Pro 20-1200 1200 60 40.33
X-cable Pro 20-1400 1400 70 34.57
X-cable Pro 20-1600 1600 80 30.25
X-cable Pro 20-1800 1800 90 26.89
X-cable Pro 20-2000 2000 100 24.20
X-cable Pro 20-2200 2200 110 22.00
X-cable Pro 20-2400 2400 120 20.17
X-cable Pro 20-2600 2600 130 18.62
X-cable Pro 20-2800 2800 140 17.29
X-cable Pro 20-3100 3100 155 15.61



The heating cable are the ideal solution for those complicated floor areas where a mat is not suitable. The outside diameter of the X-CABLE PRO is 5.5 mm. The X-CABLE PRO are rated at 20W/m and supplied as a cable on a roll. Since it is a loose floor heating cable, there is no fixed cable space. So you can change the wattage/sqm by adjusting the cable spacing.

 We can provide customized production services according to your needs. The diameter and material of the cable can be customized according to your requirements.
