SRL OEM Self-Regulating Heating Cable Pipe Freeze Protection

SRL OEM Self-Regulating Heating Cable Pipe Freeze Protection

SRL is designed for freeze protection, roof and gutter snow melting, and temperature maintenance needs. This versatile cable can be cut to length as needed, offering flexibility for various applications.

Importantly, it is engineered to prevent overheating or burnout even when overlapped, ensuring reliable and safe operation.

  • Supply voltage :

    220V to 240V
  • Nominal power :

    10W/m,16W/m, 24W/m, 30W/m, 40W/m
  • Maximum Un-energized temperature :

    85°C
  • Maximum Energized temperature :

    65°C
  • Minimum installation temperature :

    -40°C

Self Regulating Heat Cable Specification:





Supply voltage:  220V to 240V

Max. permissible operating temperature under load: +65 °C

Max. permissible operating no-load temperature: +85 °C

Temperature class: T6

Protection rating: IP67

Minimum installation temperature: -40 °C

Minimum bending radius: 25 mm at -40 °C

Rated power: 10 ,16, 24, 30, 40 (W/m) at 10°C

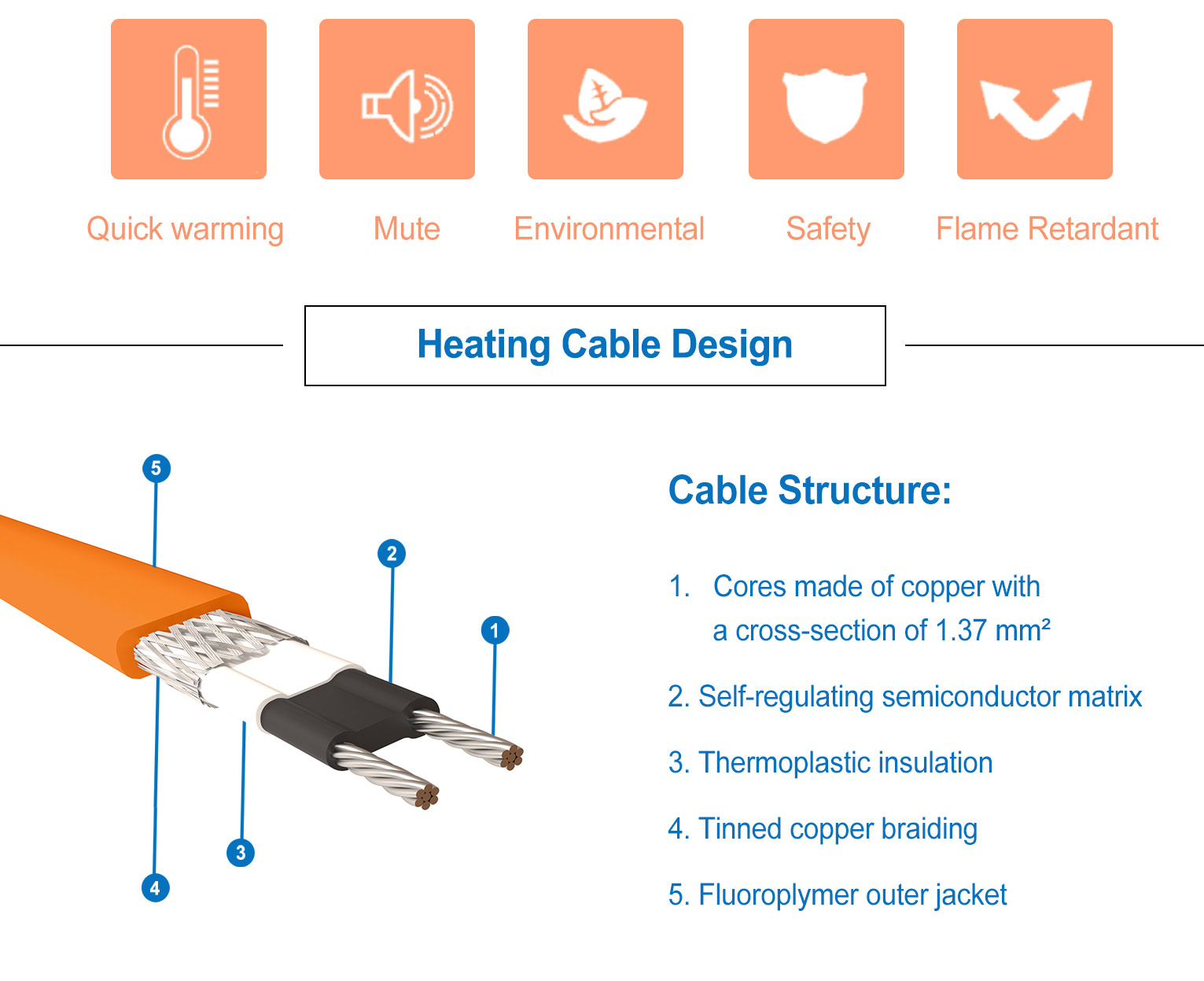

Self Regulating Heat Cable Design:

1 – Heating Cores made of nickel-plated copper

2 – Self-regulating semiconductor matrix

3 – Thermoplastic-elastomer insulation

4 – Braid made of tinned copper wires

5 – Polyolefn sheath





Self Regulating Heat Cable Features:

• It automatically regulates heat release when the ambient temperature changes

• It doubles heat output in ice and melt water

• It can be cut of to the required length

• It does not overheat or burn through in case of self-crossing

• It is resistant to precipitation, ultraviolet radiation and temperature differences

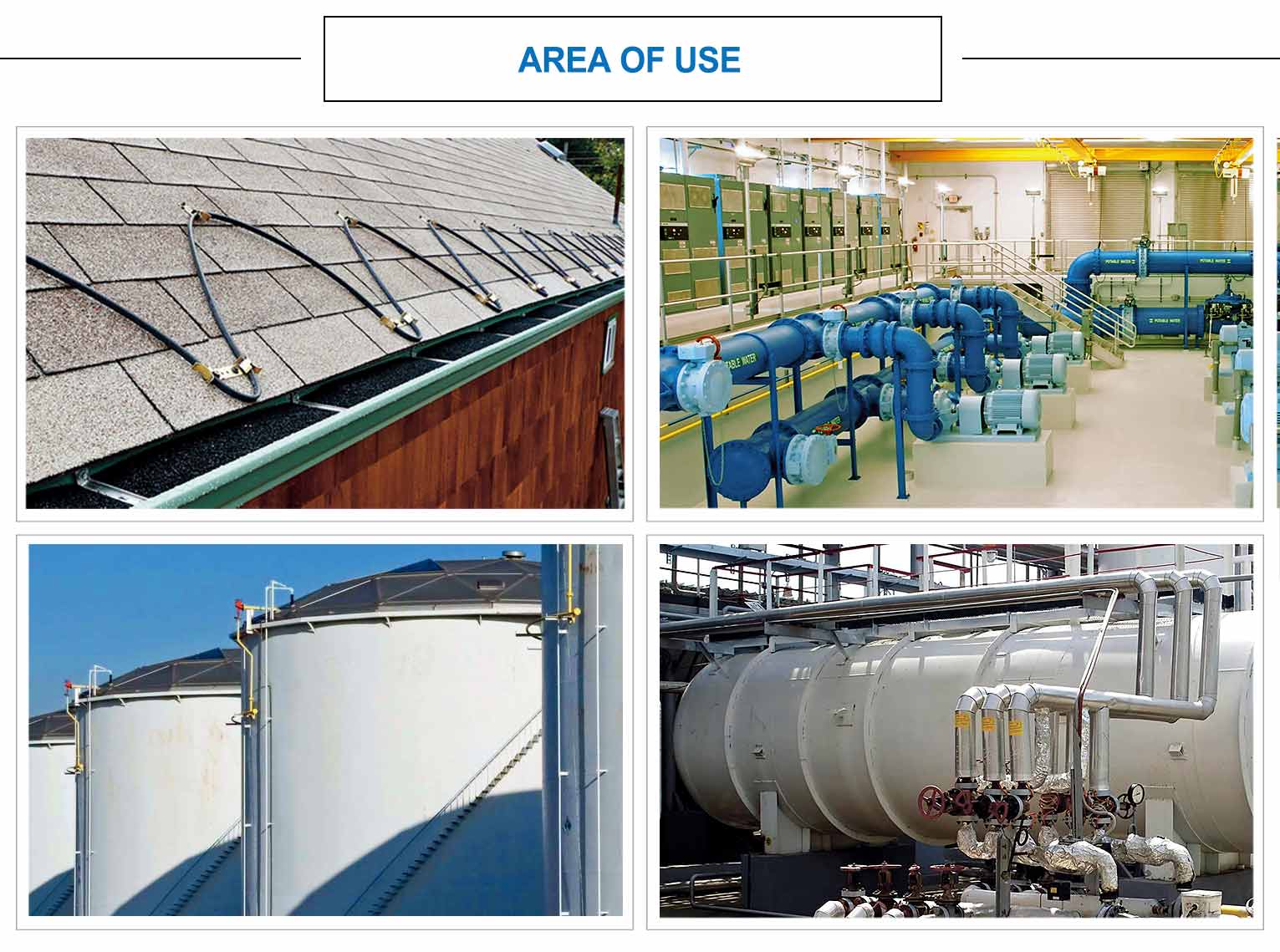

Area of Use
