In Pipe Heating Cable with Plug
Supply voltage :
220V-240VNominal power :
10 ,15 ,20(W/m) at 10°CMaximum Un-energized temperature :
85°CMaximum Energized temperature :
65°CMinimum installation temperature :

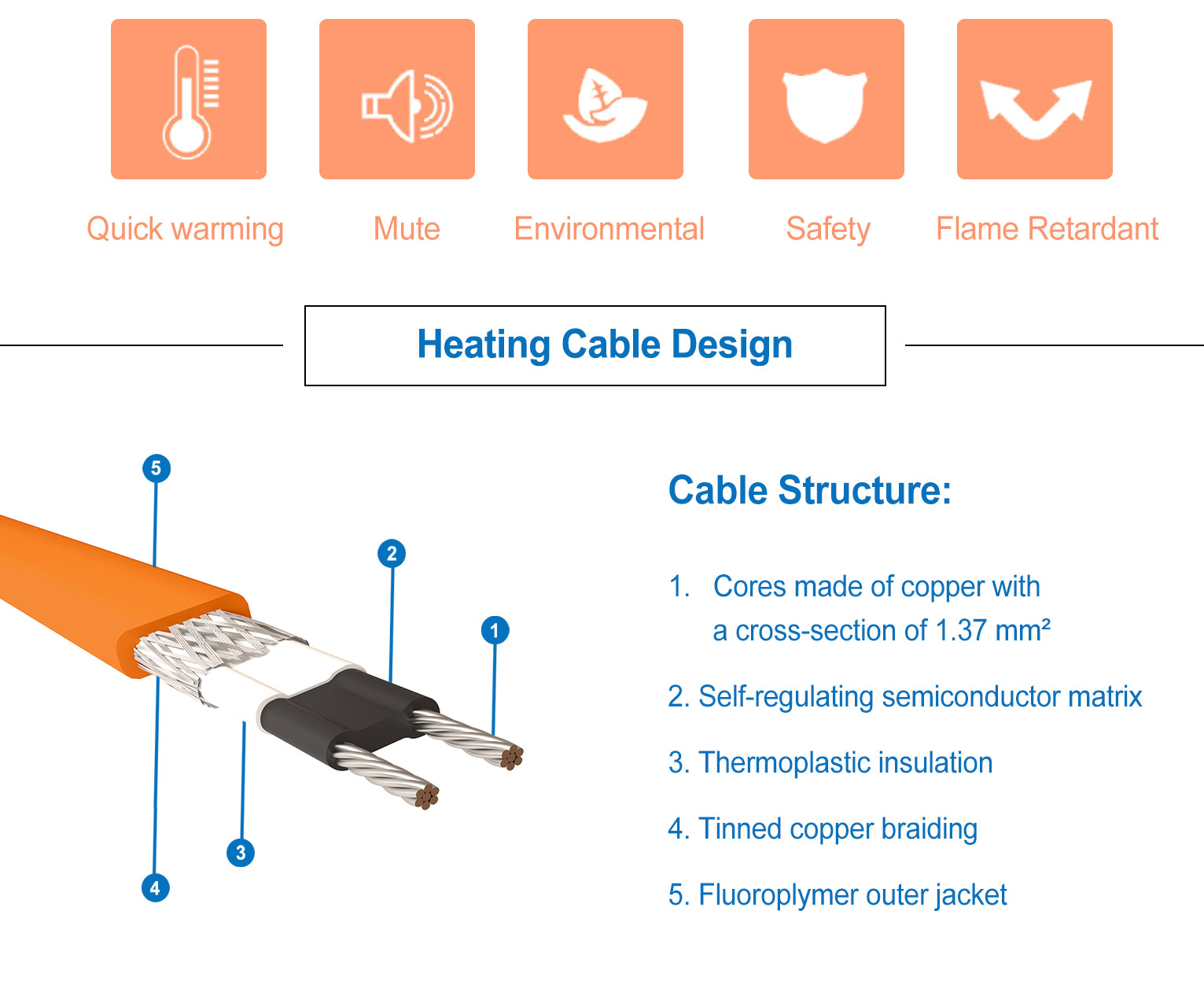

-40°C1. 0.5m㎡ copper conductors
2. Self-regulating conductive core
3. Thermoplastic insulation
4. Tinned copper braid
5. Fluoroplymer outer jacket(CF)/Thermoplastic outer jacket(CT)
Technical Data:
| SRM-KITS Series | Output Power@+ 10°C(W/m) | Heating Cable Length(m) | Heating cable Size (mm) |
| SRM-KITS-2 | 10/15/20 | 2 | 7.9*5.6 |
| SRM-KITS-4 | 10/15/20 | 4 | 7.9*5.6 |
| SRM-KITS-6 | 10/15/20 | 6 | 7.9*5.6 |
| SRM-KITS-8 | 10/15/20 | 8 | 7.9*5.6 |
| SRM-KITS-12 | 10/15/20 | 12 | 7.9*5.6 |
| SRM-KITS-14 | 10/15/20 | 14 | 7.9*5.6 |
| SRM-KITS-16 | 10/15/20 | 16 | 7.9*5.6 |
| SRM-KITS-18 | 10/15/20 | 18 | 7.9*5.6 |
| SRM-KITS-20 | 10/15/20 | 20 | 7.9*5.6 |
| SRM-KITS-25 | 10/15/20 | 25 | 7.9*5.6 |
| SRM-KITS-50 | 10/15/20 | 50 | 7.9*5.6 |

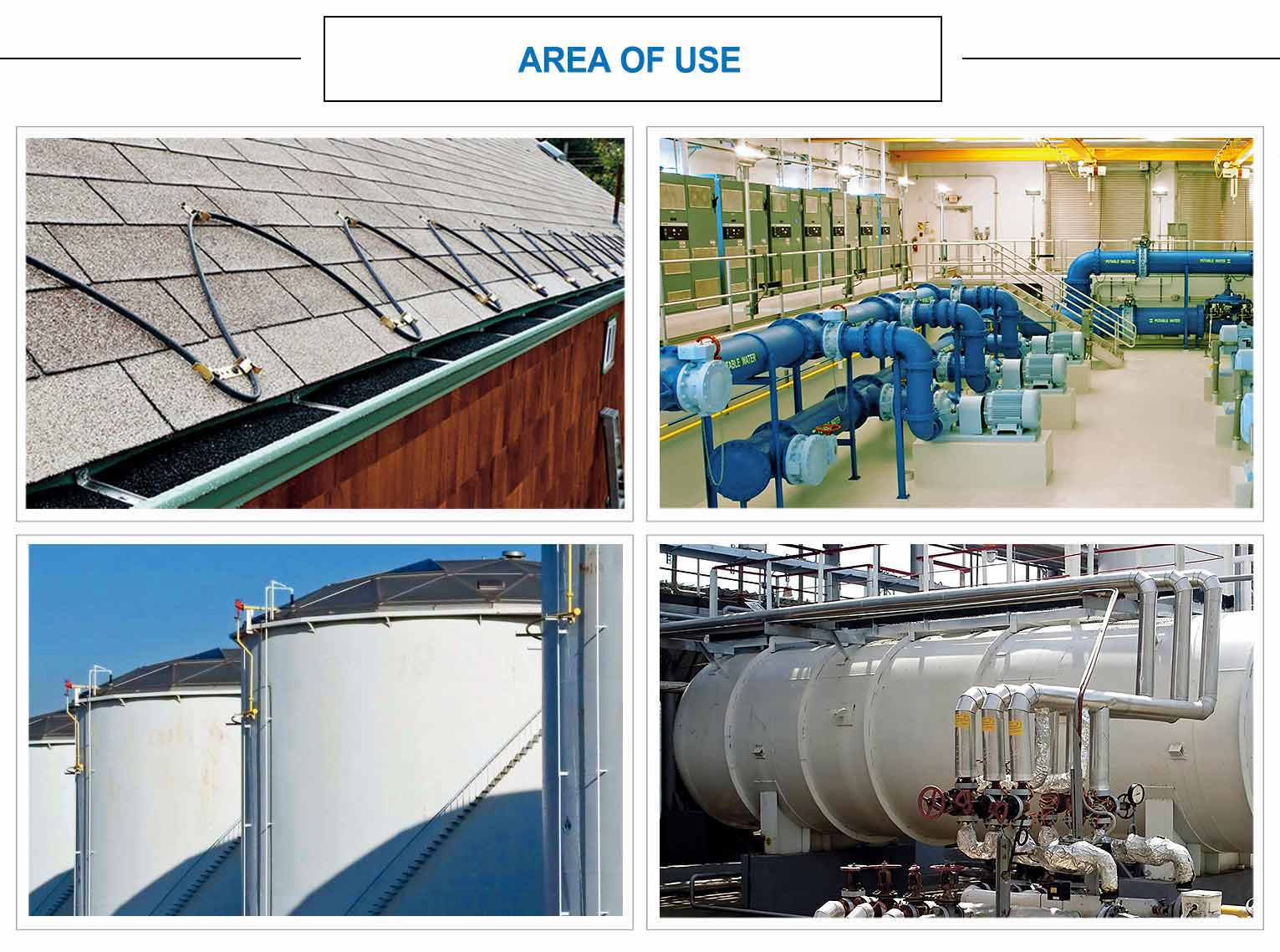

SRL is designed for freeze protection, roof and gutter snow melting, and temperature maintenance needs. This versatile cable can be cut to length as needed, offering flexibility for various applications. Importantly, it is engineered to prevent overheating or burnout even when overlapped, ensuring reliable and safe operation.
Details
Industrial-grade, perfect for freeze protection, roof and gutter snow melting, and temperature maintenance applications. This versatile cable adjusts its output automatically in response to surface and ambient temperatures, ensuring efficient and precise heating control.
Details
SRM is used for frost protection of pipelines and other application where low temperature is needed. It is suitable for hazardous area, non-hazardous area and corrosive area.
Details
SRM is a type of low-temperature self-regulating heating cable designed for residential or commercial applications, ideal for freeze protection in pipework.
Details
SRL is ideally utilized for process maintenance and frost protection in pipelines, tanks, roof and gutter anti-icing, and various applications requiring low temperatures.
Details
SRL-Pro is specifically designed for process maintenance, frost protection of pipelines, tanks, roof and gutter anti-icing. It is suitable for hazardous, non-hazardous, and corrosive environments, featuring fluoropolymer outer jacket for enhanced protection and durability.
Details
Our Water Pipe Freeze Protection Heating Cable is designed to safeguard your pipes against freezing temperatures, ensuring continuous water flow even in the coldest conditions. This innovative heating cable is easy to install and provides reliable protection for both residential and commercial applications.
Details
