Self Regulating Heat Cable SRM

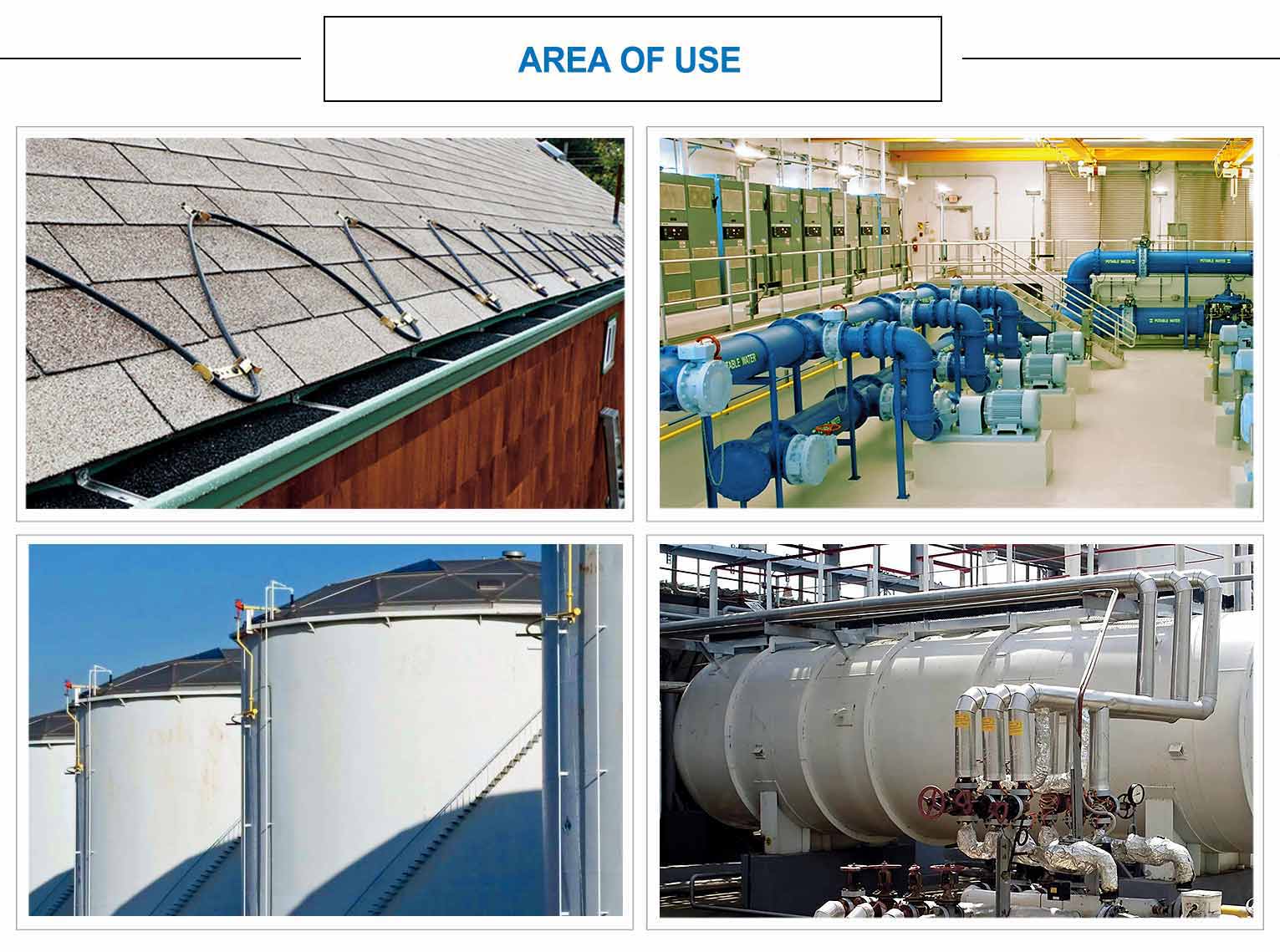

Self Regulating Heat Cable SRM can be used for antifreeze and heat preservation of water pipes, fire protection pipes, heating pipes, etc. in residential and commercial buildings.
In the cold winter, the self-limiting temperature heating tape can effectively prevent the pipes from freezing and ensure the normal circulation of the liquid in the pipes.

  • Supply voltage :

    120V / 208-277V
  • Nominal power :

    10W/m, 15W/m, 20W/m
  • Maximum Un-energized temperature :

    85°C
  • Maximum Energized temperature :

    65°C
  • Minimum installation temperature :

    -40°C

Self Regulating Heat Cable SRM Construction:

1. 0.5m㎡ copper conductors

2. Self-regulating conductive core

3. Thernoplastic insulation

4. Tinned copper braid

5. Fluoroplymer outer jacket(CF)/Thermoplastic outerjacket(CT)



Technical Data:

SRM Series Output Power@+10°C(W/m) Max length@0°C Max length@-20°C 16/20A(m) Size (mm) Weight((kg/km)
10SRM2-CT 10w/m 128 124/128 7.9*5.6 71
10SRM2-CF 10w/m 128 124/128 7.9*5.6 71
15SRM2-CT 15w/m 102 88/102 7.9*5.6 71
10SRM2-CF 15w/m 102 88/102 7.9*5.6 71
20SRM2-CT 20w/m 90 70/74 7.9*5.6 71
10SRM2-CF 20w/m 90 70/74 7.9*5.6 71





Self Regulating Heat Cable SRM Features:

  • Automatic regulation of heat release when the temperature of the heated surface changes
  • Can be cut to desired length
  • Does not overheat and does not burn out when self-intersecting
  • Resistant to precipitation, ultraviolet radiation, temperature changes
  • Can be used in safe and hazardous areas according to IEC 60800 standard
