Home Self-regulating Cable Low temperature self-regulating cable, up to 85℃

Low-temperature Self-Regulating Heating Cable SRL-PRO

Low-temperature Self-Regulating Heating Cable SRL-PRO

Freezing protection of all components of roofs and drainage systems;

Maintenance of the process temperature of pipelines and tanks in an explosion-hazard area.





  • Supply voltage :

    220V to 240V
  • Nominal power :

    10W/m ,16W/m , 24W/m , 30W/m , 40W/m
  • Maximum Un-energized temperature :

    85°C
  • Maximum Energized temperature :

    65°C
  • Minimum installation temperature :

    -40°C

Self Regulating Heat Cable Specification:





Supply voltage:  220V to 240V

Max. permissible operating temperature under load: +65 °C

Max. permissible operating no-load temperature: +85 °C

Temperature class: T6

Protection rating: IP67

Minimum installation temperature: -40 °C

Minimum bending radius: 25 mm at -40 °C

Rated power: 10 ,16, 24, 30, 40 (W/m) at 10°C





Self Regulating Heat Cable Design:

1 – Heating Cores made of nickel-plated copper

2 – Self-regulating semiconductor matrix

3 – Thermoplastic-elastomer insulation

4 – Braid made of tinned copper wires

5 – Polyolefn sheath





Self Regulating Heat Cable Features:

• It automatically regulates heat release when the ambient temperature changes

• It doubles heat output in ice and melt water

• It can be cut of to the required length

• It does not overheat or burn through in case of self-crossing

• It is resistant to precipitation, ultraviolet radiation and temperature differences

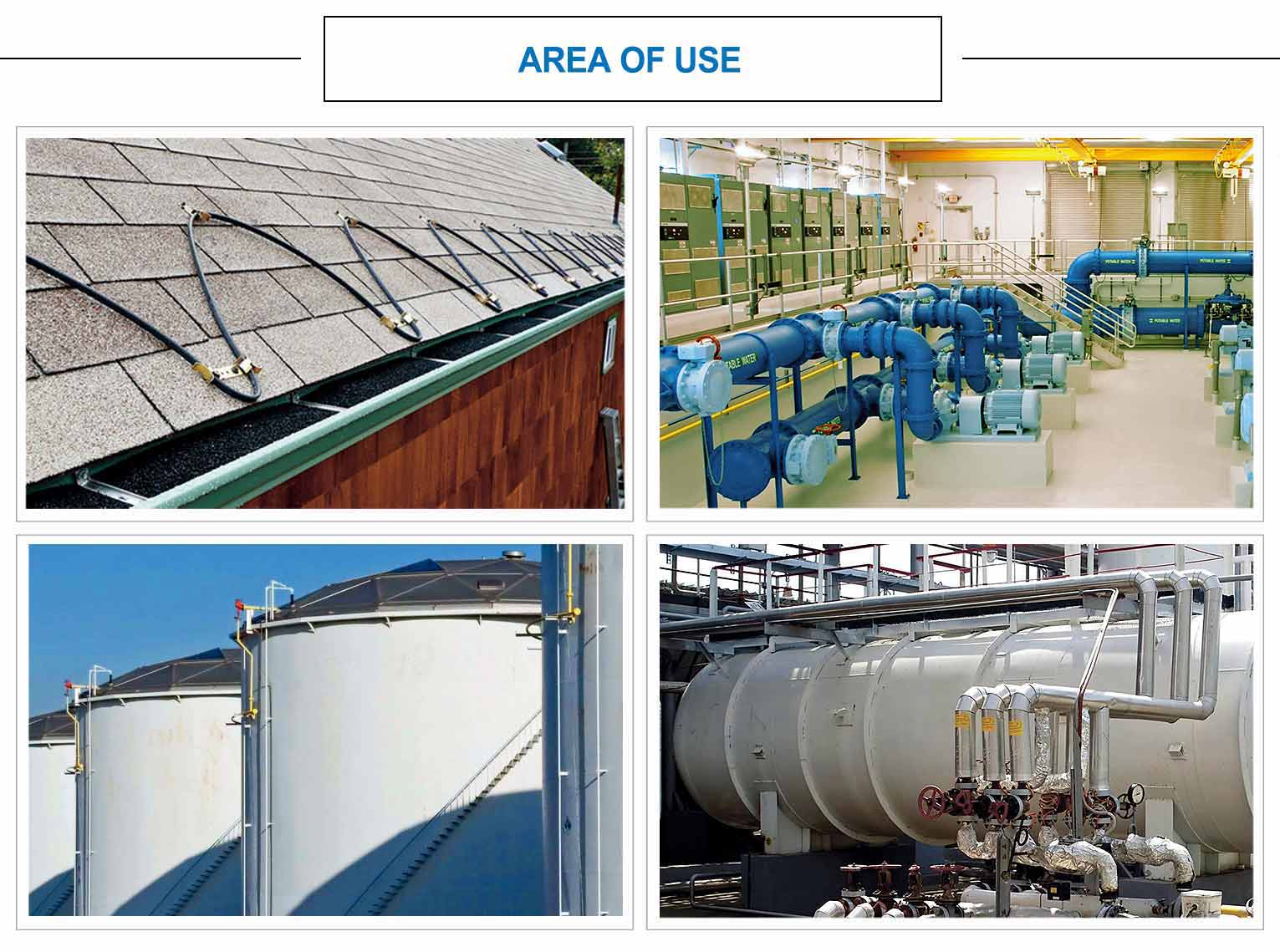

Area of Use
