Self Regulating Heat Cable SRL

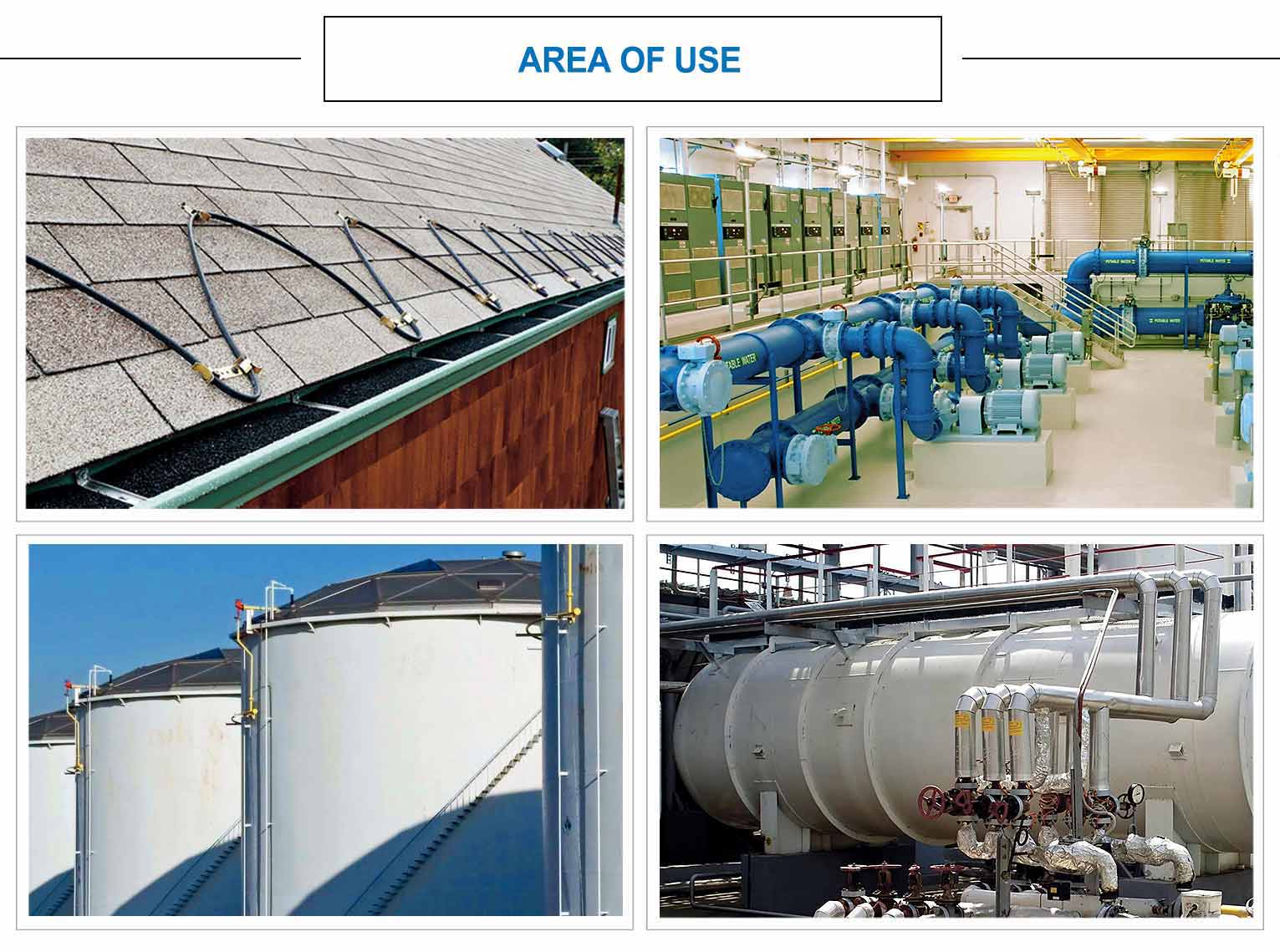

Self Regulating Heating Cable SRL can be used for roof snow melting: In areas with heavy snow accumulation, our SRL can be used to melt snow on the roof to prevent the roof from collapsing due to excessive snow accumulation.
It can effectively protect the safety of the house structure.

  • Supply voltage :

    120V / 208-277V
  • Nominal power :

    10W/m,16W/m, 24W/m, 30W/m, 40W/m
  • Maximum Un-energized temperature :

    85°C
  • Maximum Energized temperature :

    65°C
  • Minimum installation temperature :

    -40°C

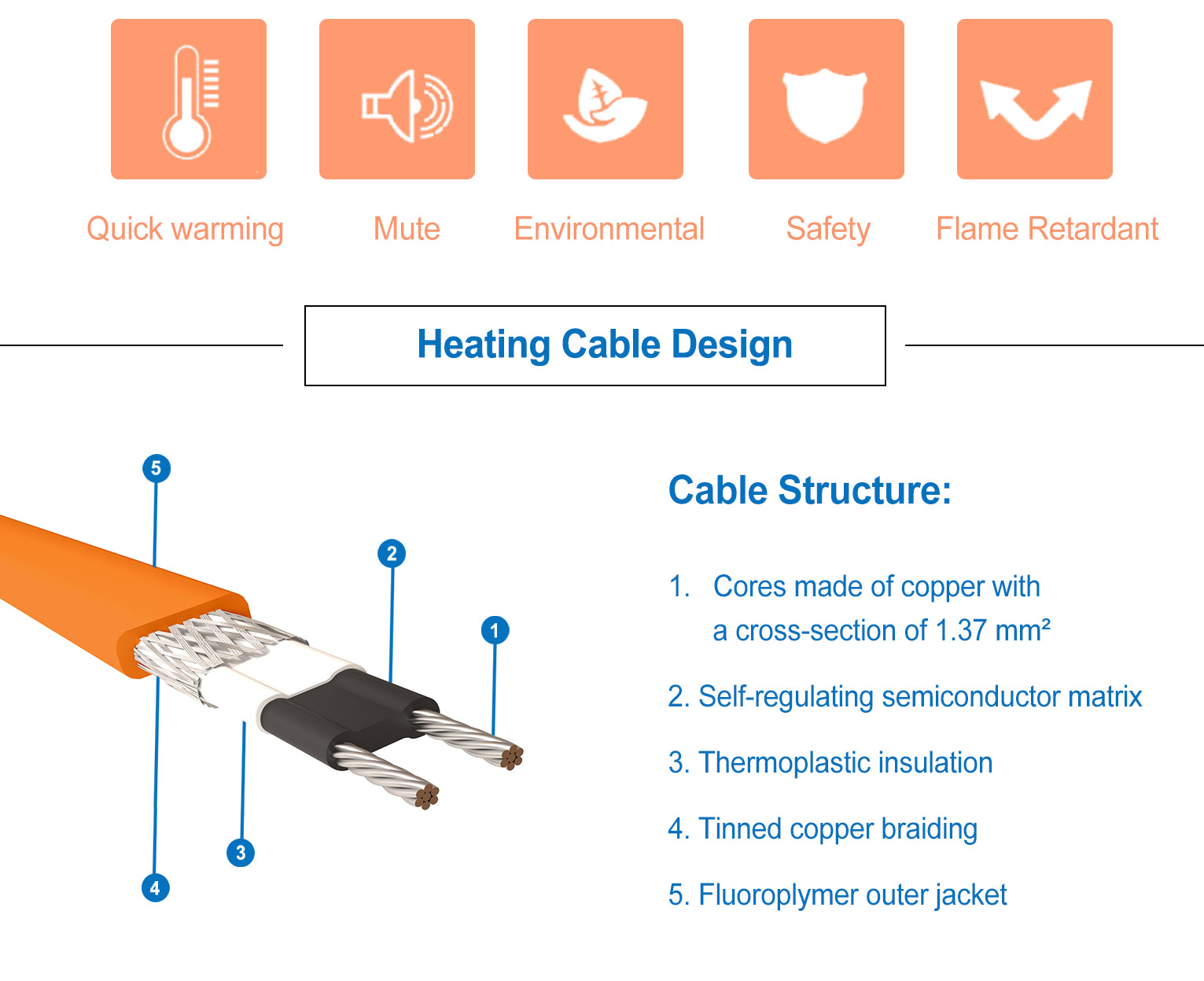

Self Regulating Heating Cable SRL Cable Construction:

1.1.0m㎡ copper conductors

2.Self-regulating conductive core.

3.Thermoplastic insulation.

4.FEP insulation layer

5.Tinned copper braid

6.Fluoroplymer outer jacket(CF)/Thermoplastic outerjacket(CT)



Technical Data:

SRL Series Output Power@+10°C(W/m) Max length@0°C Max length@-20°C 16/20A(m) Size (mm) Weight((kg/km)
10SRL2-CT 10w/m 180 150/180 11x6.0 100
10SRL2-CF 10w/m 180 150/180 11x6.0 100
16SRL2-CT 16w/m 180 150/180 11x6.0 100
16SRL2-CF 16w/m 180 150/180 11x6.0 100
24SRL2-CT 24w/m 146 130/146 11x6.0 100
24SRL2-CF 24w/m 146 130/146 11x6.0 100
30SRL2-CT 30w/m 114/24 88/110 11x6.0 100
30SRL2-CF 30w/m 114/24 88/110 11x6.0 100
40SRL2-CT 40w/m 84/96 69/84 11x6.0 100
40SRL2-CF 40w/m 84/96 69/84 11x6.0 100



Self Regulating Heating Cable SRL Features:

  • Automatic regulation of heat release when the temperature of the heated surface changes
  • Can be cut to desired length
  • Does not overheat and does not burn out when self-intersecting
  • Resistant to precipitation, ultraviolet radiation, temperature changes
  • Can be used in safe and hazardous areas according to  IEC 60800 standard
